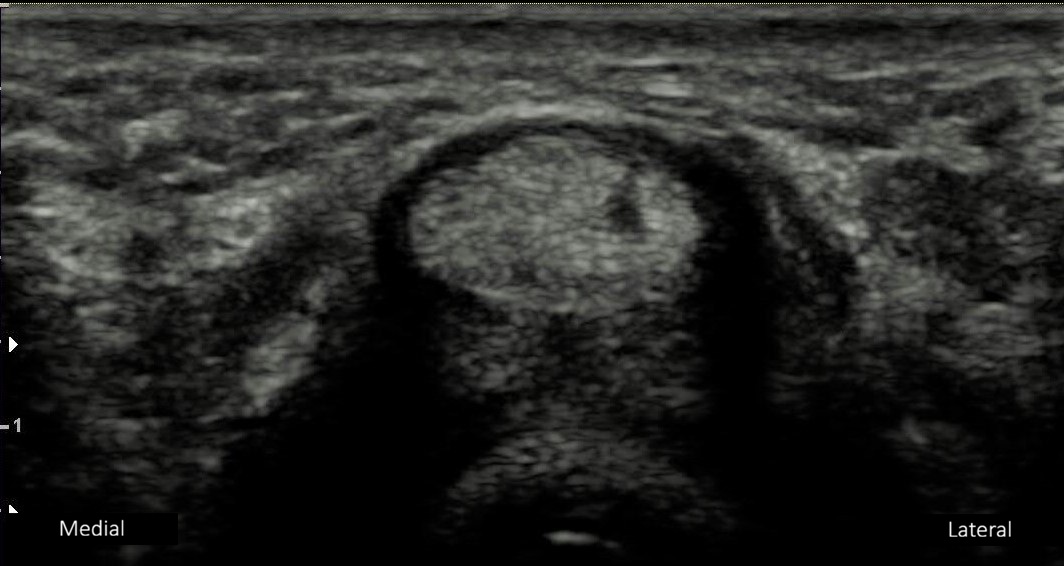

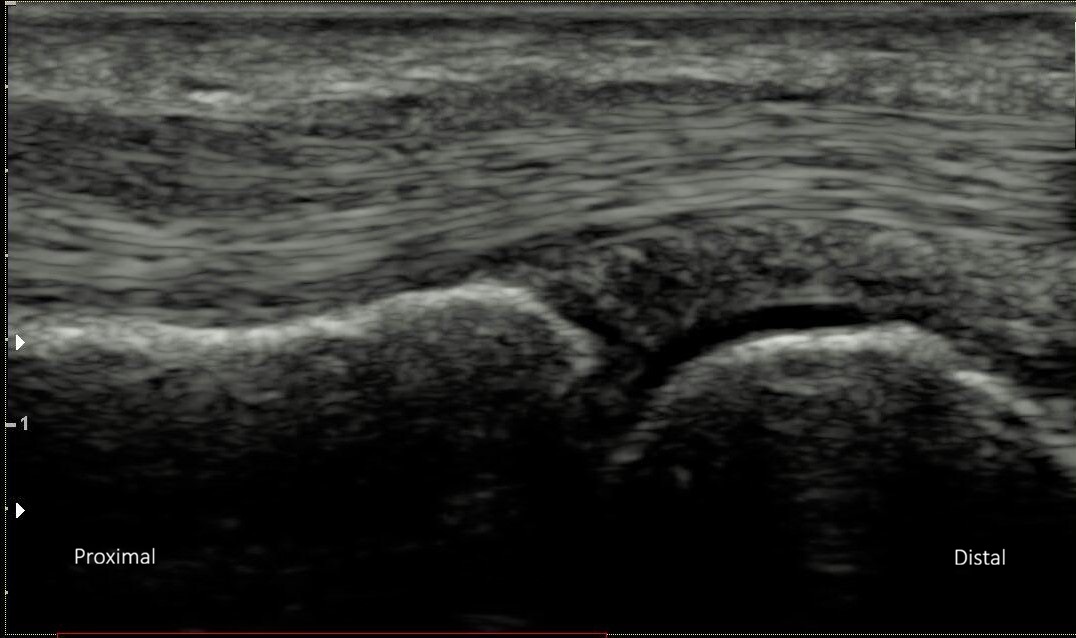

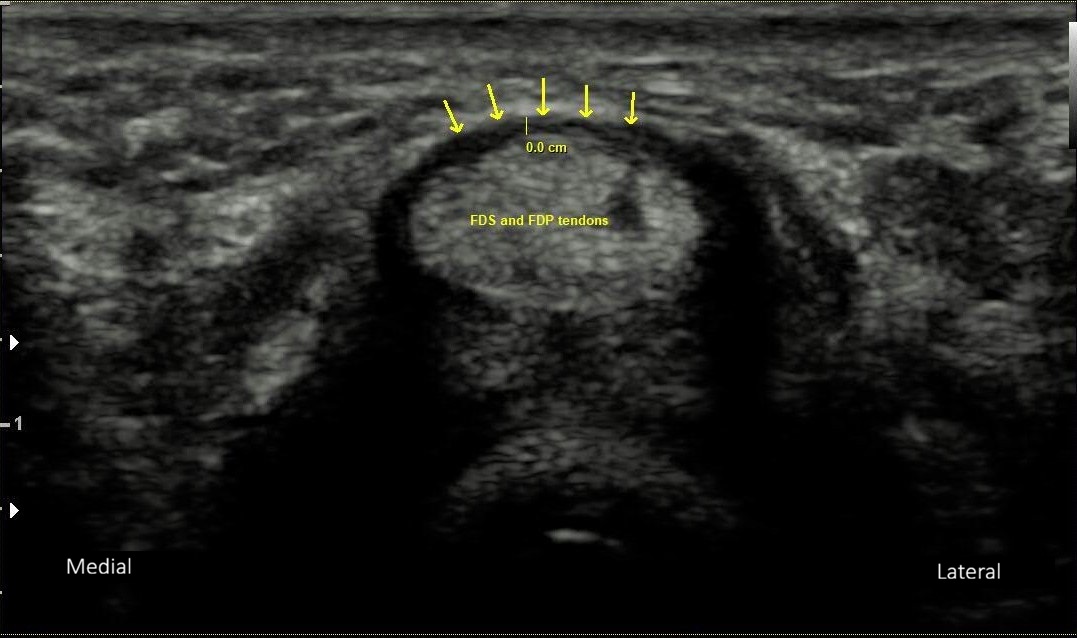

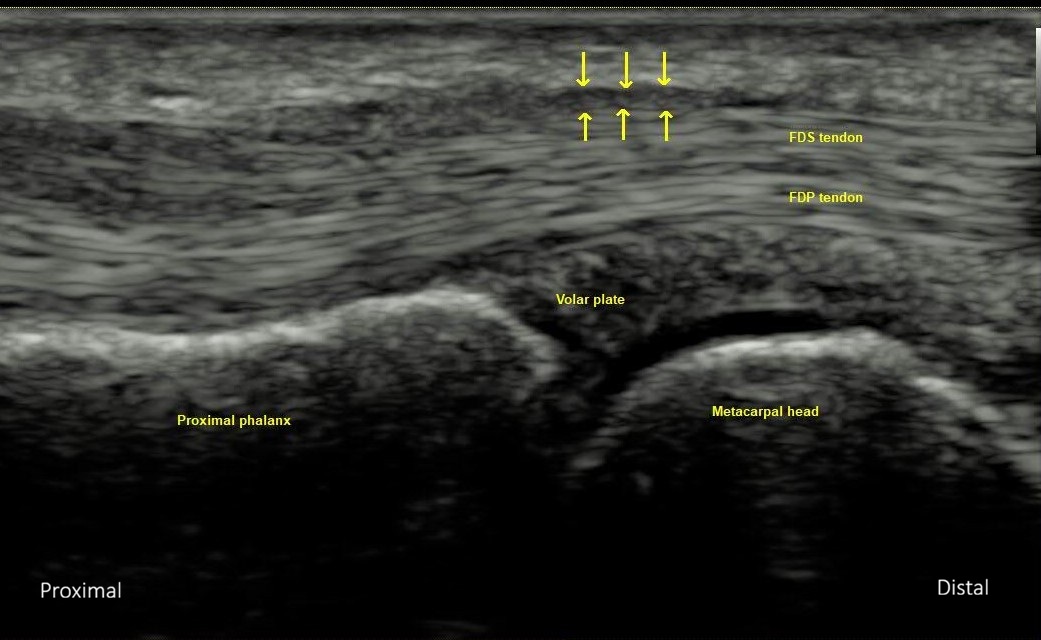

Image Interpretation: The FDS and FDP tendons are intact from mid palm to distal insertion. The FDS tendon in particular is thickened and hypoechoic just distal to the A1 pulley. With dynamic imaging of flexion and extension of the digit, the tendons, in particular those of the FDS, have difficulty passing under the A1 pulley. The A1 pulley was thickened at 0.75mm. These findings are consistent with stenosing tenosynovitis. Additional dynamic imaging is seen of the therapeutic flexor tendon sheath corticosteroid injection, with excellent intra-sheath flow
Teaching Pearl: The A1 pulley can be measured by ultrasound, and thickening supports the diagnosis of trigger finger when paired with clinical catching or locking with finger flexion. The pulley is best assessed in long axis over the metacarpal head while also evaluating for flexor tendon thickening, tenosynovitis, and tendon gliding.
A maximal A1 pulley thickness above approximately 0.62 mm has been described as abnormal in sonographic studies. Dynamic imaging during flexion and extension can confirm impaired passage of the FDS/FDP tendons beneath the pulley.
References:
1. Spirig A, Juon B, Banz Y, Rieben R, Vogelin E. Correlation between sonographic and in vivo measurement of A1 pulleys in trigger fingers. Ultrasound Med Biol. 2016;42(7):1482-1490. doi:10.1016/j.ultrasmedbio.2016.02.017
2. Guerini H, Pessis E, Theumann N, et al. Sonographic appearance of trigger fingers. J Ultrasound Med. 2008;27(10):1407-1413. doi:10.7863/jum.2008.27.10.1407
3. Bianchi S, Gitto S, Draghi F. Ultrasound features of trigger finger: review of the literature. J Ultrasound Med. 2019;38(12):3141-3154. doi:10.1002/jum.15025
