Insertional Achilles Tendinopathy And Haglund Syndrome

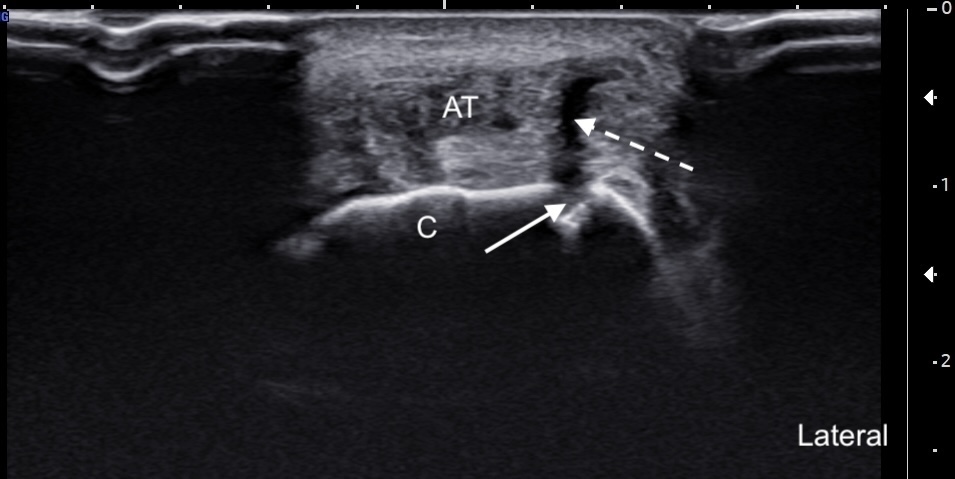

Authors, Editors, Case Information Author: Alexandre Lavigne, MD Affiliation: Kansas City Orthopedic Alliance, University of Missouri PM&R, University of Montreal PM&R Co Author(s): Michael Khadavi, MD, RMSK Senior Editor: Derek Stokes, MD Clinical Vignette: A 54-year-old female runner presented with a two-year history of insidious onset posterior ankle pain that began while running. Over the past two months, the pain has intensified significantly, ultimately preventing her from continuing to run. On physical examination, there is tenderness over the superior aspect of the posterior calcaneus at the Achilles tendon insertion. She is able to perform single-leg calf raises and single-leg hops, both of which reproduce her symptoms. Type of Probe Used: 3-14 MHz linear array transducer Labeled Short Axis Image #2 of the Achilles Tendon Insertion Labeled short-axis ultrasound image of the insertional Achilles tendon, a few millimeters distal to the superior edge of the calcaneus, demonstrating findings similar to those in Figure 4, with the addition of a clearly visible subcortical cyst. Labels: AT: Achilles tendon, C: calcaneus, solid arrow: subcortical cyst, dashed arrow: partial tear. Unlabeled Short Axis Image #2 of the Achilles Tendon Insertion with Color Doppler Short-axis ultrasound image of the pre-insertional Achilles tendon, a few millimeters proximal to the superior edge of the calcaneus, using color Doppler, demonstrating multiple neovessels within the retrocalcaneal bursa and the deep fibers of the tendon. Notably, the Doppler signal appears more prominent in the short-axis view compared to the long-axis images. Lateral Ankle Radiograph Lateral ankle radiograph confirming the presence of a Haglund deformity (arrow). Unlabeled Short Axis Image #2 of the Achilles Tendon Insertion Unlabeled short-axis ultrasound image of the insertional Achilles tendon, a few millimeters distal to the superior edge of the calcaneus, demonstrating findings similar to those in Figure 4, with the addition of a clearly visible subcortical cyst. Labeled Short Axis Image of the Achilles Tendon Insertion Labeled short-axis ultrasound image of the insertional Achilles tendon, at the level of the superior edge of the calcaneus showing increased thickness, hypoechogenicity, and partial tearing of the deep tendon fibers. Labels: AT: Achilles tendon, C: calcaneus, solid arrow: retrocalcaneal bursa, dashed arrow: partial tear. Labeled Long Axis Image of the Achilles Tendon Insertion Labeled long-axis ultrasound image of the insertional and pre-insertional Achilles tendon demonstrating increased thickness, diffuse hypoechogenicity, a Haglund deformity with subcortical cystic changes (solid arrow), and a mild retrocalcaneal bursal effusion (dotted arrow) near Kager's fat pad. Labels: ATPI: Pre-insertional Achilles tendon, ATI: Insertional Achilles tendon C: calcaneus, HD: Haglund's deformity, KFP: Kager's Fat Pad, solid arrow: subcortical cystic changes, dashed arrow: retrocalcaneal bursal effusion. Unlabeled Long Axis Image of the Achilles Tendon Insertion with Color Doppler Unlabeled long-axis ultrasound image of the insertional and pre-insertional Achilles tendon using color Doppler, demonstrating a few neovessels at the retrocalcaneal bursa and within the deep tendon fibers, consistent with chronic bursitis and tendinopathy. Unlabeled Short Axis Image of the Achilles Tendon Insertion Unlabeled short-axis ultrasound image of the insertional Achilles tendon, at the level of the superior edge of the calcaneus. Unlabeled Long Axis Image of the Achilles Tendon Insertion Unlabeled long-axis ultrasound image of the insertional and pre-insertional Achilles tendon. Interpretation Image Interpretation: Chronic insertional and pre-insertional Achilles tendinosis associated with a Haglund's deformity. There is subcortical cystic change at the level of the Haglund deformity, consistent with chronic Achilles tendon pathology. Partial tearing of the deep fibers of the Achilles tendon is noted adjacent to the bony prominence. A mild retrocalcaneal bursal effusion is also present. Teaching Pearl: This patient was managed conservatively, as she had not yet pursued any prior treatment for her Achilles tendon symptoms. A rigid heel wedge was prescribed, along with a progressive strengthening program in physical therapy, with care taken to avoid dorsiflexion beyond neutral during eccentric loading. If conservative management does not lead to meaningful improvement, more invasive interventions will be considered. A logical next step would be percutaneous ultrasonic tenotomy using newer, advanced devices capable of debriding both the pre-insertional Achilles tendon and the underlying Haglund deformity. This approach may also be combined with orthobiologic therapies to enhance healing. Chimenti RL, Stover DW, Fick BS, Hall MM. Percutaneous Ultrasonic Tenotomy Reduces Insertional Achilles Tendinopathy Pain With High Patient Satisfaction and a Low Complication Rate. J Ultrasound Med. 2019 Jun;38(6):1629-1635. doi: 10.1002/jum.14835. Epub 2018 Oct 2. PMID: 30280399; PMCID: PMC6461537.
NOTE: For more information, please contact the AMSSM, 4000 W. 114th Street, Suite 100, Leawood, KS 66211 (913) 327-1415.

Back		Top

© The American Medical Society for Sports Medicine
4000 W. 114th Street, Suite 100
Leawood, KS 66211
Phone: 913.327.1415

Website created by the computer geek

Authors, Editors, Case Information

Labeled Short Axis Image #2 of the Achilles Tendon Insertion

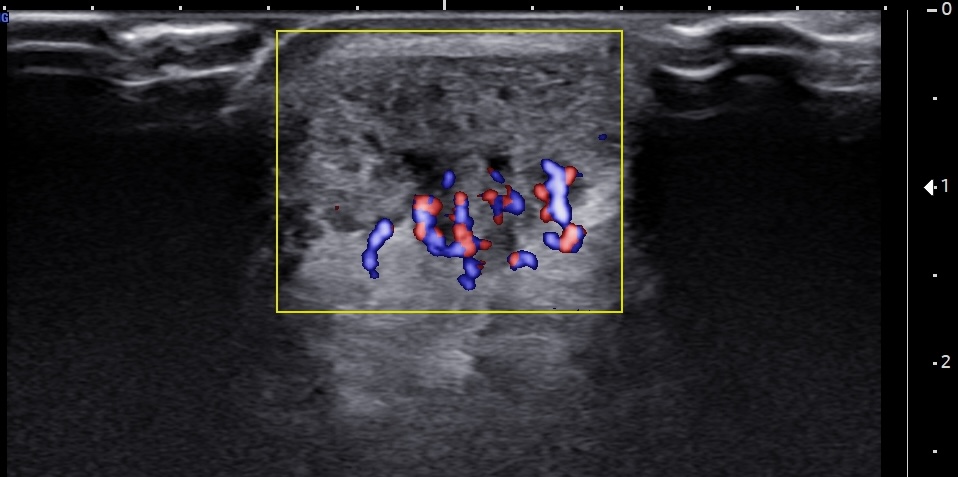

Unlabeled Short Axis Image #2 of the Achilles Tendon Insertion with Color Doppler

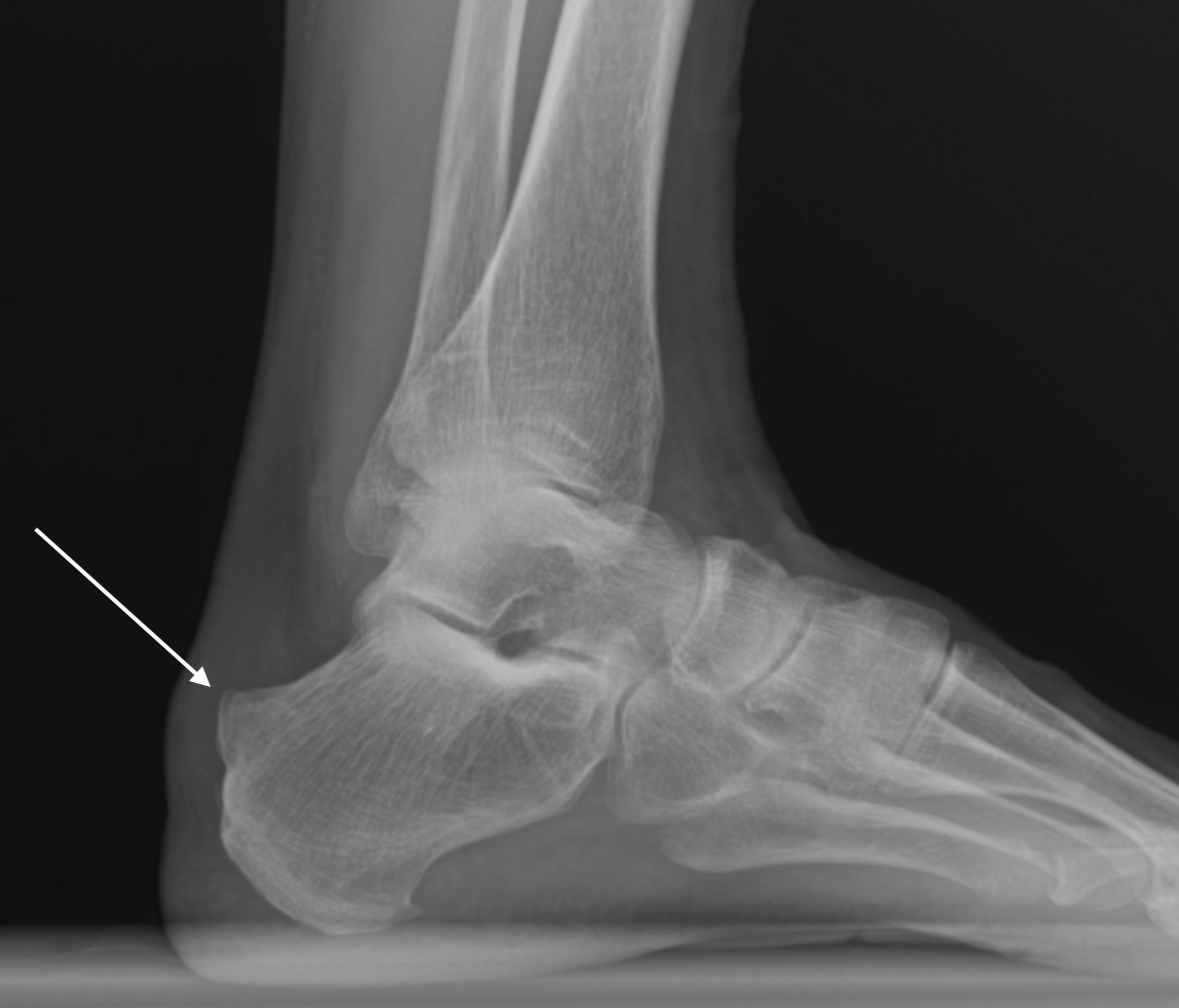

Lateral Ankle Radiograph

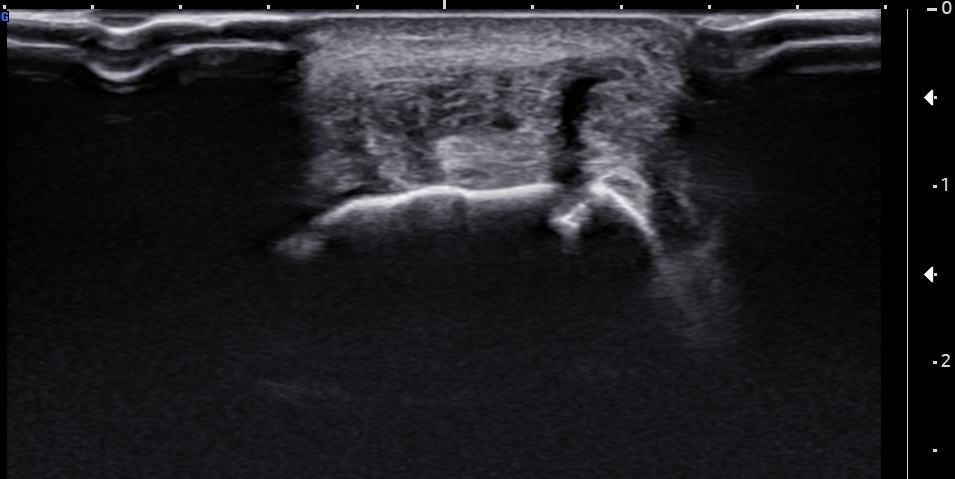

Unlabeled Short Axis Image #2 of the Achilles Tendon Insertion

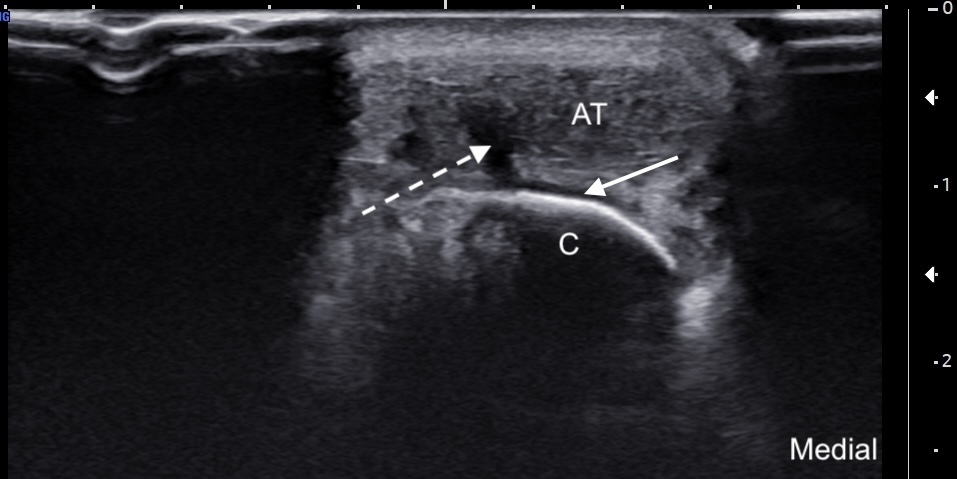

Labeled Short Axis Image of the Achilles Tendon Insertion

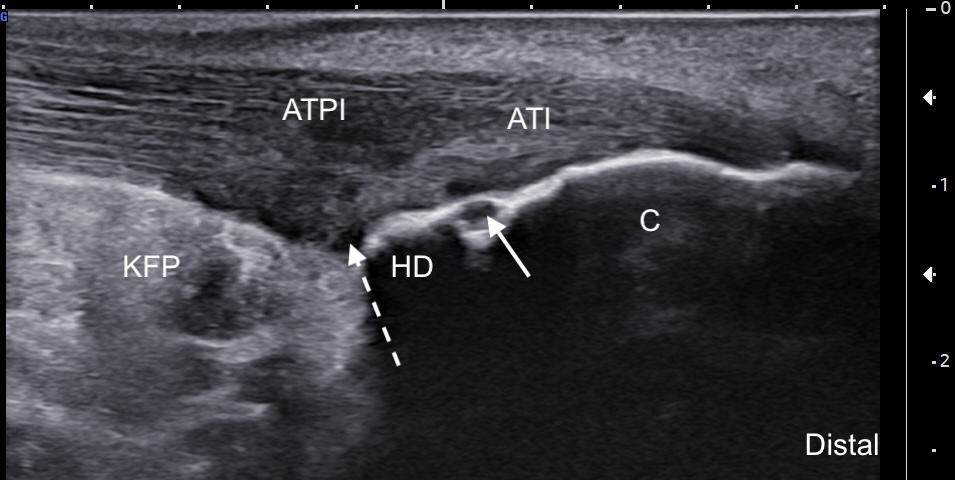

Labeled Long Axis Image of the Achilles Tendon Insertion

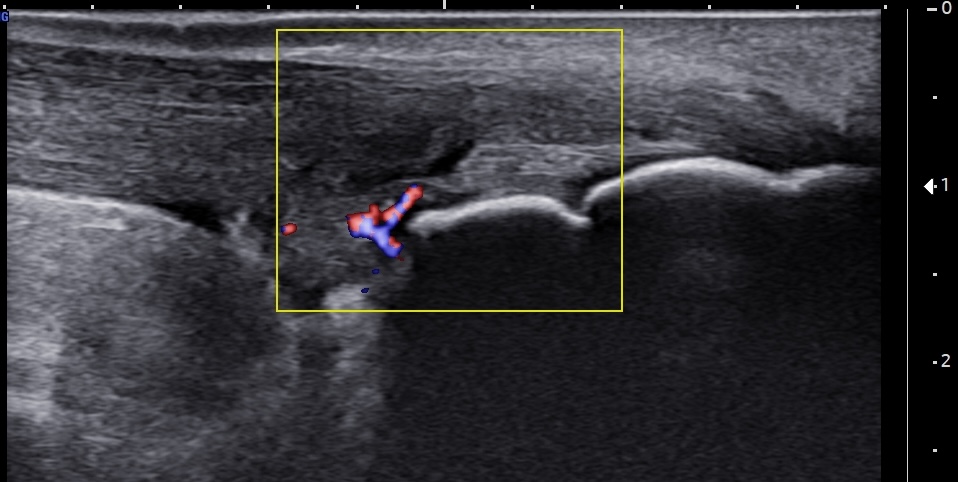

Unlabeled Long Axis Image of the Achilles Tendon Insertion with Color Doppler

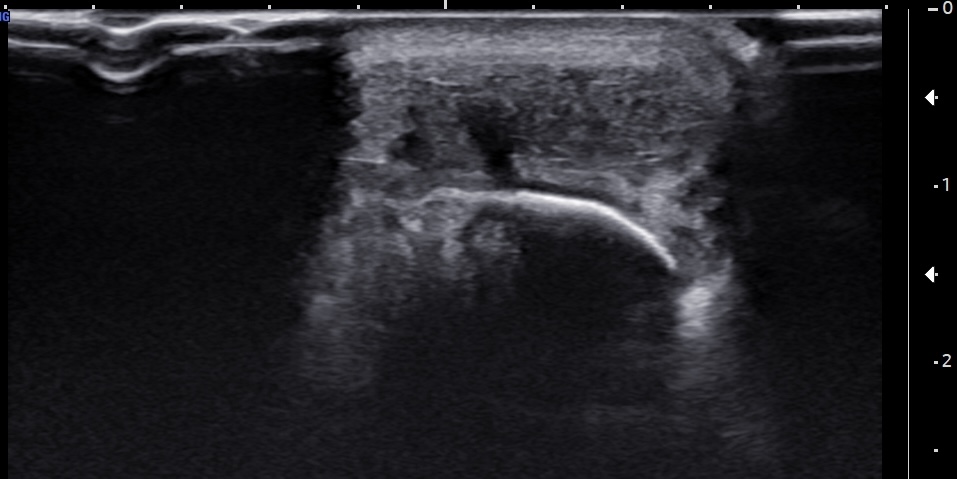

Unlabeled Short Axis Image of the Achilles Tendon Insertion

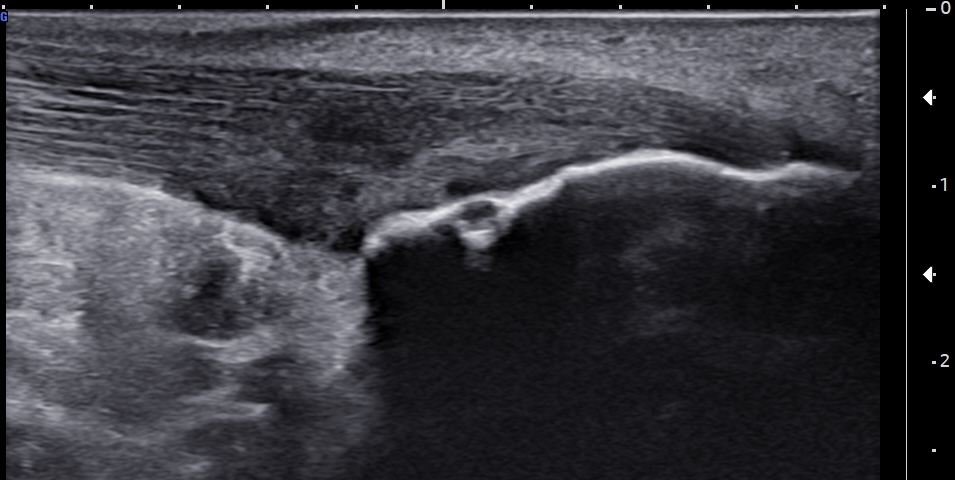

Unlabeled Long Axis Image of the Achilles Tendon Insertion
